1. Specification
| A. Electrical Characteristics | ||
| Frequency | 5150-5850MHz | |
| VSWR | < 2.0 | |
| Efficiency | ≈83% | |
| Peak Gain | 12dBi | |
| Impedance | 50 Ohm | |
| Polarization | H+V | |
| Horizontal Beamwidth | 360° | |
| Vertical Beamwidth | 8-19° | |
| T90(H) roundness | ±5 | |
| Max Power | 50W | |
| B. Material & Mechanical | ||
| Connector Type | N-K*2 | |

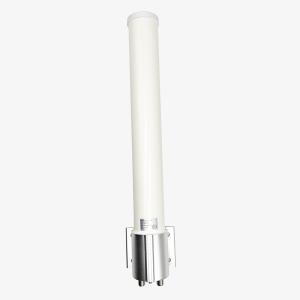

| Dimension | Φ72*600±5mm | |
| Weight | 2.1Kg | |
| Radome material | Fiberglass(White) | |
| C. Environmental | ||
| Operation Temperature | - 45˚C ~ +85 ˚C | |
| Storage Temperature | - 45˚C ~ +85 ˚C | |
| Rated Wind Velocity | 36.9m/s | |
| Lighting Protection | Dc grounding | |
2. Antenna - S Parameter Test Data
2.1 VSWR
2.2 Total Efficiency & Gain:
| Port 1(H) | Port 2(V) | |||||
| Frequency (MHz) | Gain (dBi) | Efficiency (%) | Frequency (MHz) | Gain (dBi) | Efficiency (%) | |
| 4900 | 9.4 | 71.2 | 4900 | 8.7 | 58.3 | |
| 5000 | 10.1 | 76.6 | 5000 | 9.1 | 63.9 | |
| 5100 | 10.4 | 74.0 | 5100 | 9.5 | 69.9 | |
| 5200 | 10.7 | 73.7 | 5200 | 9.9 | 69.1 | |
| 5300 | 11.2 | 81.1 | 5300 | 10.1 | 75.2 | |
| 5400 | 11.8 | 85.6 | 5400 | 9.8 | 69.3 | |
| 5500 | 12.0 | 85.9 | 5500 | 9.7 | 68.9 | |
| 5600 | 12.0 | 89.1 | 5600 | 9.4 | 66.9 | |
| 5700 | 11.8 | 87.6 | 5700 | 8.7 | 62.3 | |
| 5800 | 11.2 | 87.7 | 5800 | 9.8 | 68.0 | |
| 5900 | 7.0 | 51.9 | 5900 | 10.8 | 75.6 | |
| 6000 | 9.6 | 63.4 | 6000 | 9.3 | 66.7 | |
| 3D | 2D-Horizontal | 2D-Vertical | |||
| 5150MHz | | | | |||
| 5500MHz | | | | |||
| 5850MHz | | | | |||
| 3D | 2D-Horizontal | 2D-Vertical | |||
| 5150MHz | | | | |||
| 5500MHz | | | | |||
| 5850MHz | | | | |||
