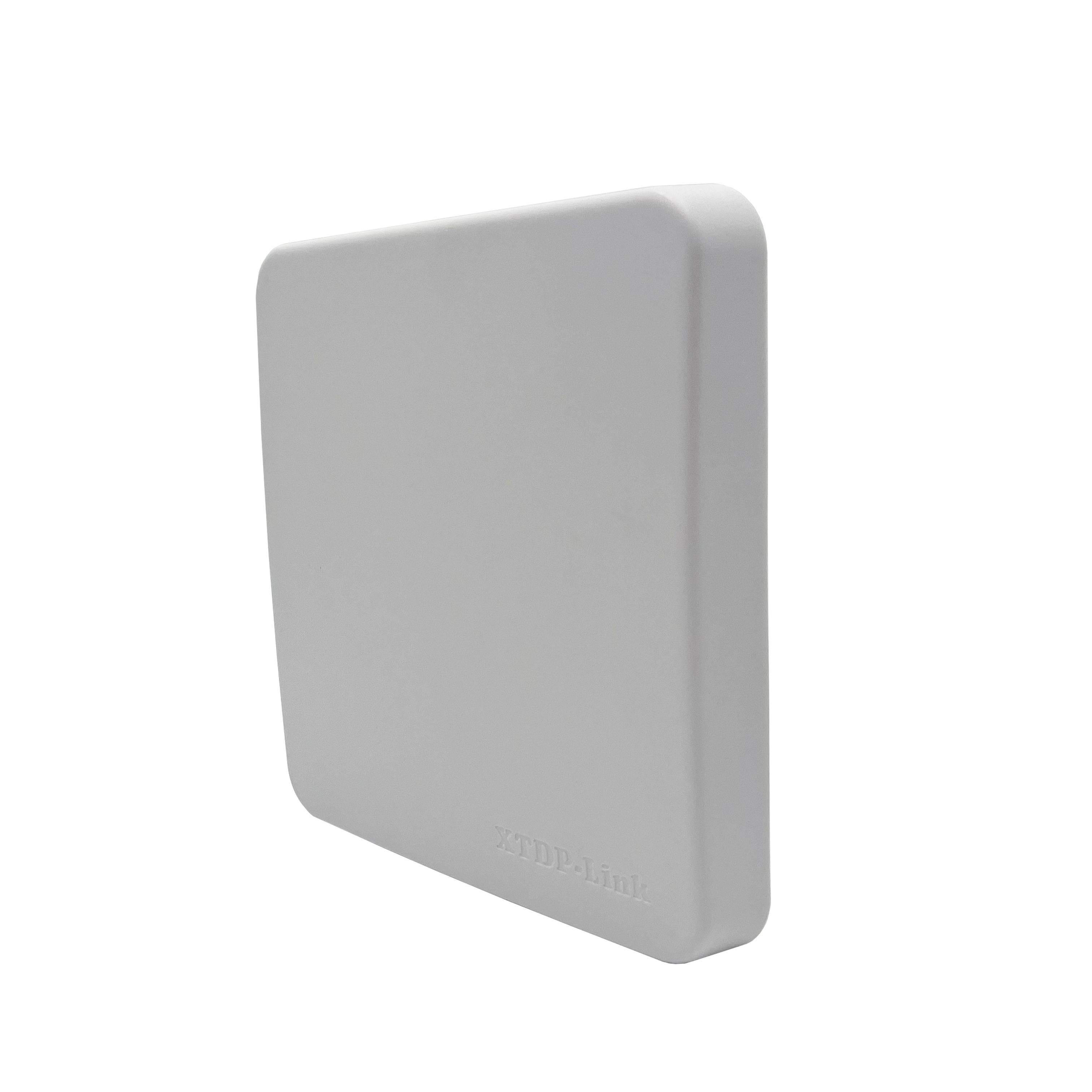

1. Specification
| A. Electrical Characteristics | |
| Frequency | 7700-8300MHz |
| S.W.R. | <= 2.0 |
| Antenna Gain | 19dBi |
| Polarization | V |
| Horizontal Beamwidth | 14±2° |
| Vertical Beamwidth | 14±2° |
| F/B | ＞20db |
| Impedance | 50Ohm |
| Max. Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | N -K |
| Dimension | 160*160*23mm |
| Radome material | ABS |
| Mount Pole | ∅30-∅50 |
| Weight | 0.4Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
2. Antenna - S Parameter Test Data
2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency(MHz) | Gain(dBi) |
| 7700 | 19.1 |
| 7750 | 18.8 |
| 7800 | 18.5 |
| 7850 | 19.4 |
| 7900 | 19.0 |
| 7950 | 19.7 |
| 8000 | 19.9 |
| 8050 | 19.9 |
| 8100 | 19.2 |
| 8150 | 20.2 |
| 8200 | 20.0 |
| 8250 | 19.7 |
| 8300 | 20.0 |
| Port1 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| 7700MHz | | | |
| 8000MHz | | | |
| 8300MHz | | | |
